[Rhodes22-list] my 76 rhodes

[Roger Pihlaja]

Todd,

This was very generous of you!  You've obviously put a lot of work into
this.  I've replaced the drawing  files you sent previously with these
documents.  I don't know what I'll use them for; but, it's good information
to have.

If I somehow conveyed a negative impression regarding your earlier drawings,
that was not my intention.  After seeing the pictures of the interior of
Hank's boat, your drawings caused me to start asking some questions about
how one would start virtually from scratch with rebuilding the interior.
Without some sort of documentation, like these drawings, it's difficult to
even start discussing the project.  There are so many major & minor details
conveyed in pictures & drawings that would require thousands of words of
text to explain otherwise.  In the absence of such visual documents, either
one has the necessary skills to just eyeball the job & do it, or one
doesn't.  In the absence of documentation like you've provided, to try to
start explaining how to do the job to a novice remotely via the internet is
absurd.  Believe me, as an engineer, I understand how difficult this project
is going to be & the amount of work that went into just the preparation of
just these three drawings.   I would certainly not be willing to pull up my
cabin sole just to document the underlying structure nor would any other
Rhodes 22 owner whose boat was in sailing condition.  I doubt that GBI would
be willing to release such data either.  But, this is exactly the sort of
information Hank is going to need if he is to have any chance of success
with his project.  You have done Hank & the list a tremendous service!

Roger Pihlaja
S/V Dynamic Equilibrium

----- Original Message -----
From: "Todd Tavares" <sprocket80 at mail.com>
To: "The Rhodes 22 mail list" <rhodes22-list at rhodes22.org>
Sent: Sunday, December 05, 2004 2:42 AM
Subject: Re: [Rhodes22-list] my 76 rhodes


Hank, Roger,

  I spent a couple of hours working on the boat today and had a
chance to look more closely at the structures in the cabin. I have

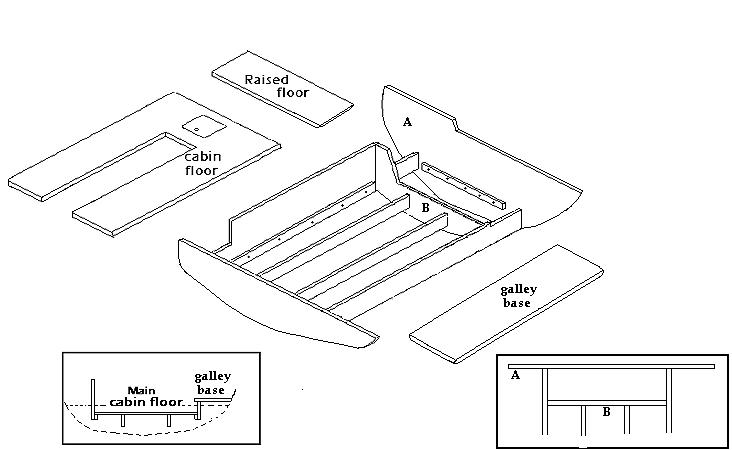

ammended my drawings to show the exact layout in my 1977 R22.

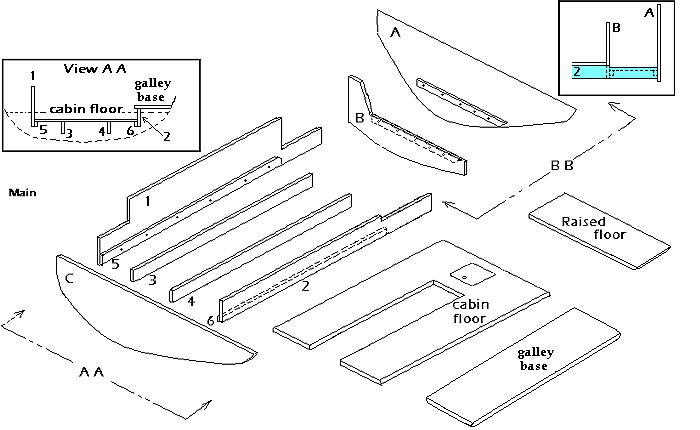

   The stringer I had labeled #1 actually runs from the rear
bulkhead (C) to the forward bulkhead (A). I did not remove the
galley base shelf, but made a guess how the forward end of stringer
#2 should look. The galley base shelf (and the top of stringer #2)
is about 3/4" to 1" higher than the raised floor section under the
porta-potty. There are cleats on bulkheads A and B to support the
raised floor section flush with the top of bulkhead B. I have made
a guess that the forward end of stringer 2 is cut down to support
the starboard end of the raised floor. (if not, then it should be)

   It is 22-3/4" from the bottom of the companionway opening to the

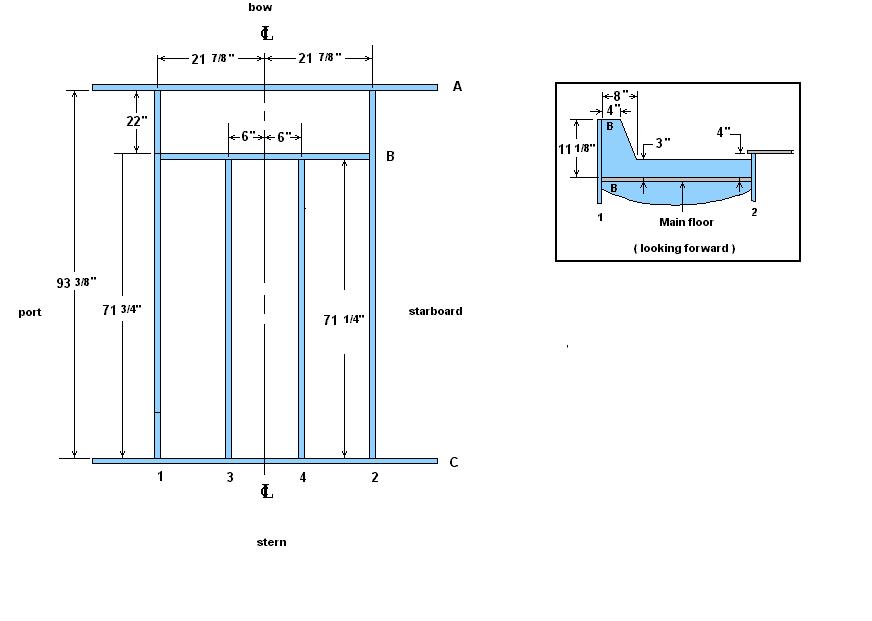

top of the cabin main floor. I have made another drawing with
dimensions locating the stringers and bulheads referenced to an
imaginary centerline and the rear cabin bulkhead C. After leveling the boat
according to Bob Skinner's method using the cockpit seats, these drawings
should
be a pretty good guide.

   Before I start getting negative feedback---I made these
drawings for the sole purpose of helping someone rebuild an
interior which they have never seen. These drawings are not to be
used for any other purpose.

Todd



--
___________________________________________________________
Sign-up for Ads Free at Mail.com
http://promo.mail.com/adsfreejump.htm




----------------------------------------------------------------------------
----


> Name: 1.JPG Type: image/jpeg Size: 69654 bytes Desc: not available
> Url: http://www.rhodes22.org/pipermail/rhodes22-list/attch/200412/05/1.jpg
>


----------------------------------------------------------------------------
----


> Name: 3.JPG Type: image/jpeg Size: 47316 bytes Desc: not available
> Url: http://www.rhodes22.org/pipermail/rhodes22-list/attch/200412/05/3.jpg
>


----------------------------------------------------------------------------
----


> Name: 2.JPG Type: image/jpeg Size: 61074 bytes Desc: not available
> Url: http://www.rhodes22.org/pipermail/rhodes22-list/attch/200412/05/2.jpg
>


----------------------------------------------------------------------------
----
