[Rhodes22-list] Boom Room Update Feb 6 reply

[RUSSELL E MILLER]

Since this design is independent of the Pop-Top Enclosure, how do you snug
og the forword section to be rain proof.  We had Stan's origional Bomm-Room
on our Bulldog snd it was not very weather tite forward, it also velcroed to
the Pop-Top


Russ
----- Original Message -----
From: "David Bradley" <dwbrad at gmail.com>
To: "The Rhodes 22 mail list" <rhodes22-list at rhodes22.org>
Sent: Monday, February 06, 2006 12:49 PM
Subject: [Rhodes22-list] Boom Room Update Feb 6


Thanks again to all who have been participating in the Boom Room
discussion.  Sorry to clutter your e-mail for those who aren't interested.

I've tried to capture the discussion to date and offer this crude rendering
as "version 1"of a schematic to force some design decisions.

Per Stan's guidance:

1.  Our goal is to build a "good" boom room that can be marketed as an R-22
option for under $1,000, with subsequent options in the form of
interchangeable side panels.

2.  It should look good but will not incur undue design/manufacturing
expense for aesthetics only.  (For what it's worth, I believe the Boom Room
will be seen by many when at anchor in popular mooring areas... probably
differs around the country.)

3.  Ease of set-up and take-down is a key benefit, as it will drive usage
and therefore satisfaction.

4.  Slim's Boom Room is closest to what Stan has in mind, and is a good
starting point.

We have had a good exchange on materials and methods.  I've tried to be true
to the discussion but don't claim to be (a) a designer, (b) a draftsman, or

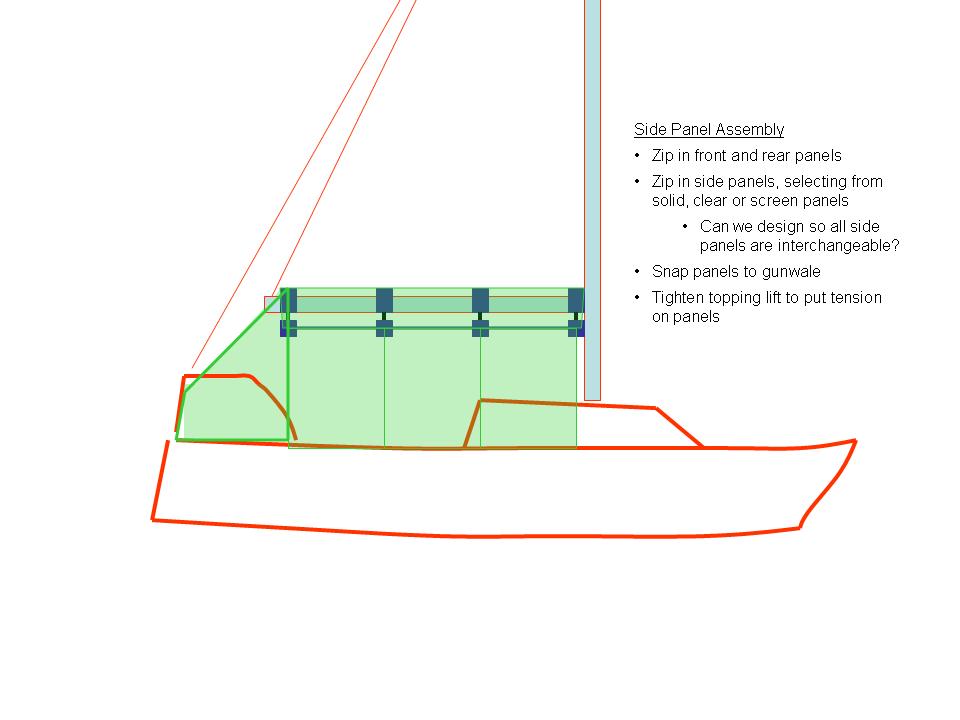

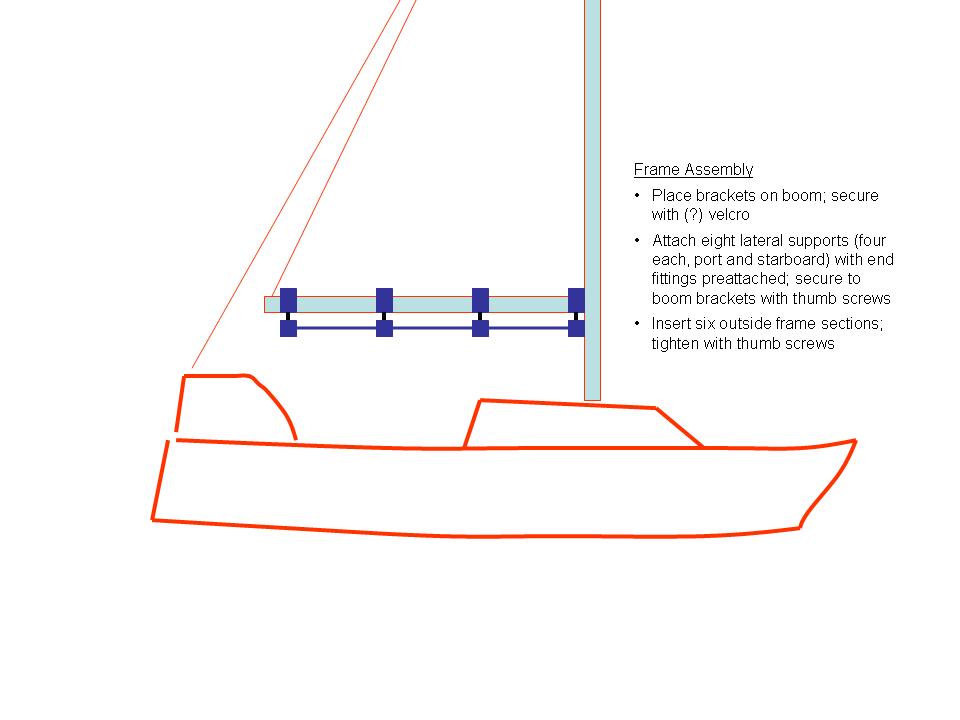

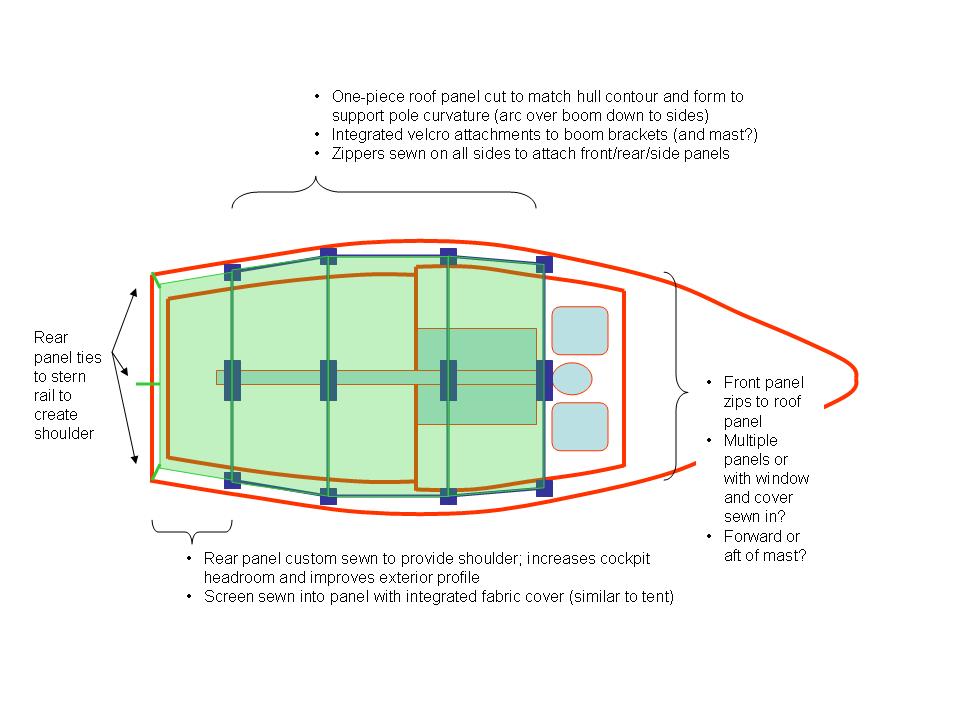

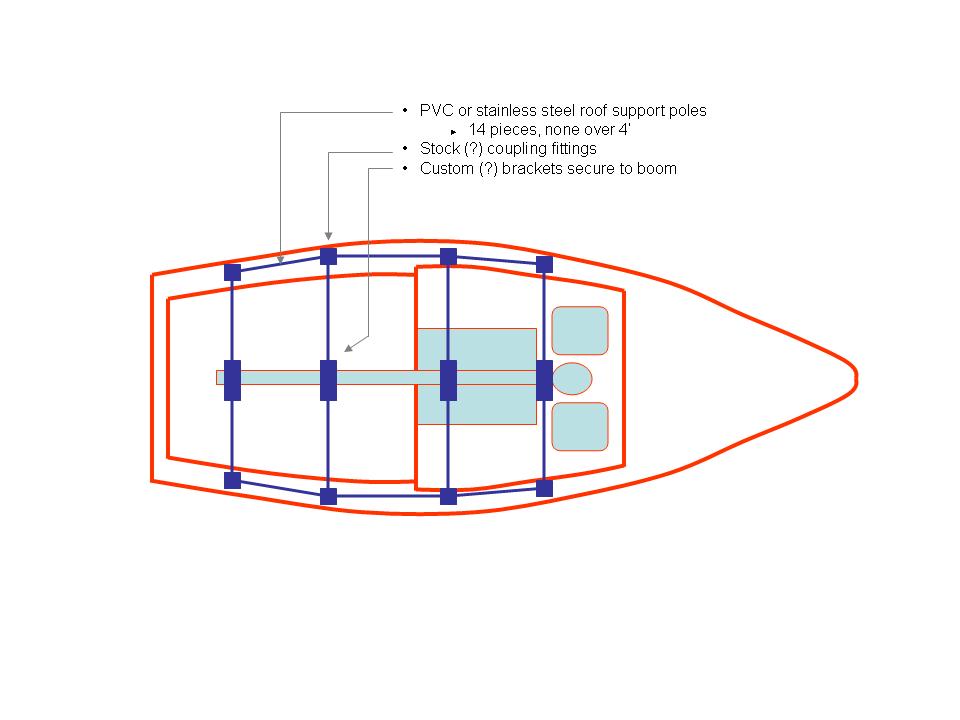

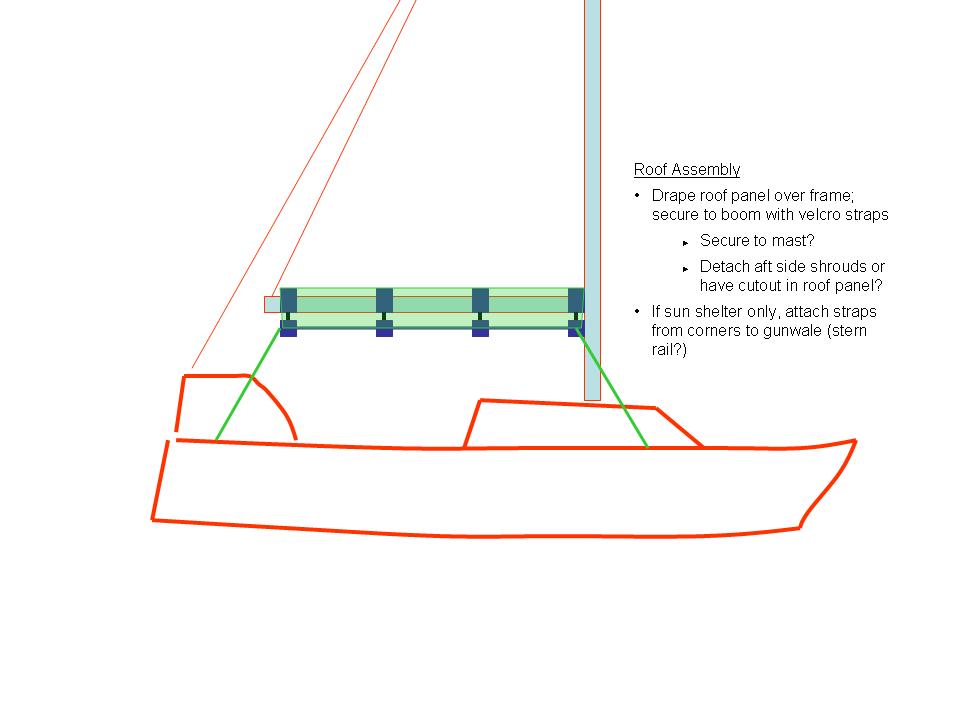

(c) and engineer.  So please have a look at the attached JPEG "sketches"
that perhaps can lead us to a schmematic for a prototype.  If you can
provide specific comments, I will do my best to capture and manage an
update/decision process.  Think of this as part social experiment...

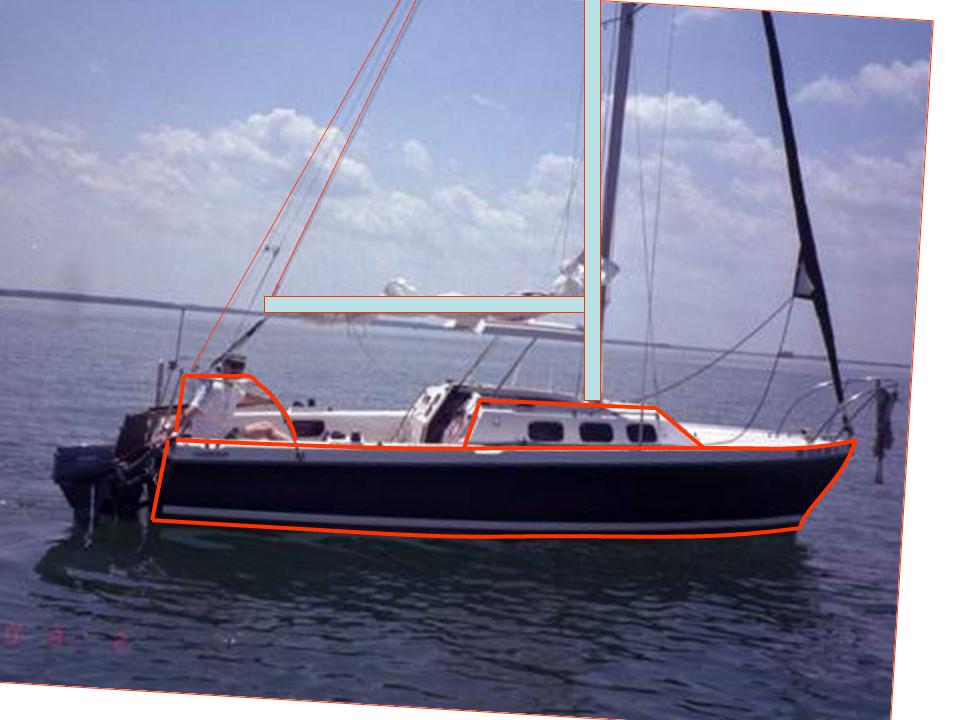

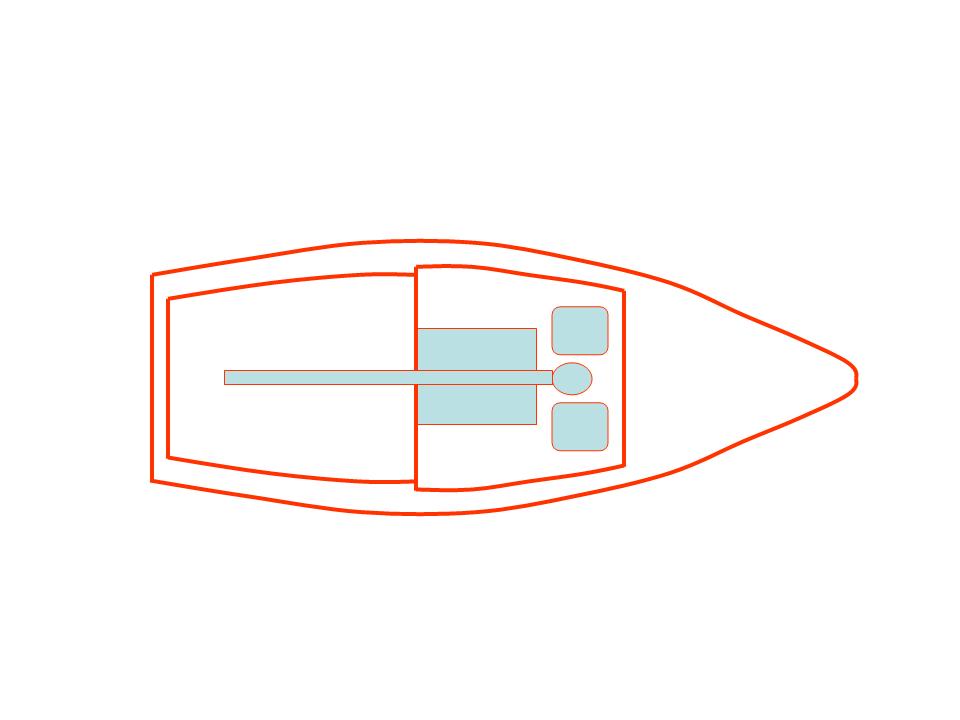

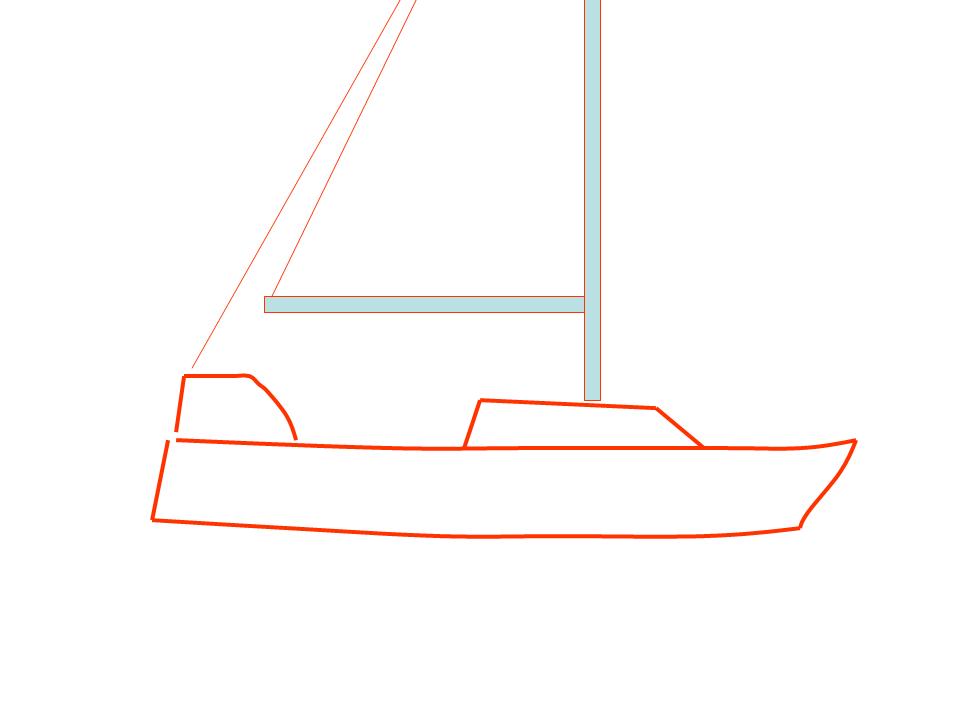

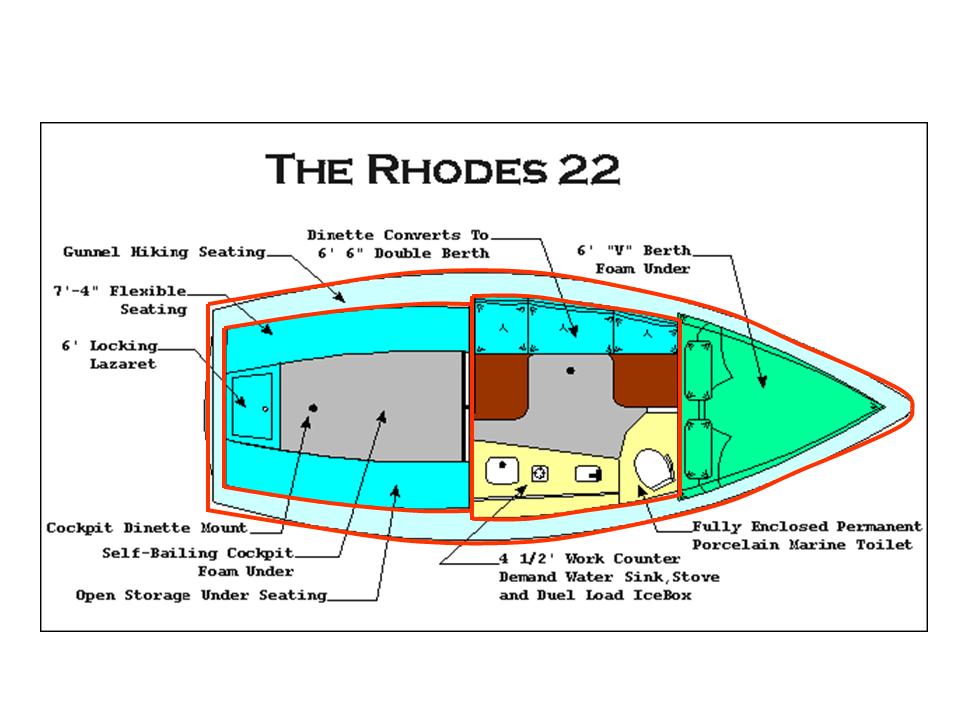

A note on the renderings.  I've used what's available on the web to create a
to-scale outline of the hull, cockpit and cabin trunk.  If anyone has better
drawings please let me know.  Once we get this going I will drop many of
these slides, but for today just wanted you to see where I got the
outlines.  If anyone would like the PowerPoint file please contact me
off-list at dwbrad at gmail.com.  Happy to provide if someone has a way to
convert to real schematics.  And last, Ed K and others, please feel free to
insert correct terminology where my engineering vocabulary falls short.

Thanks,

Dave B.


--
David Bradley
203.253.9973
dwbrad at gmail.com



----------------------------------------------------------------------------
----
