[Rhodes22-list] Rummy, look at inside Rory's Garage!

[Tootle]

Rummy,

     Look at the inside of Rory's Garage!

>http://www.nabble.com/file/7273/E27C2146.JPG

Rory,
      Stan could use you for a week at the plant.  Especially in the parts
room.  My equipment is much simpler than what you are showing.  Maybe I do
not have all the parts... But then mine works.

Ed K
Greenville, SC, USA


Rory Orkin wrote:
>
> Thank you so much.. Yes you have a very different set up.. More Like I
> would have imagined it should be.. Would love to see it .. Perhaps later
> in the spring.. Appreciate the help and offer.
>
> Mary Lou Troy-2 wrote:
>>
>> Rory,

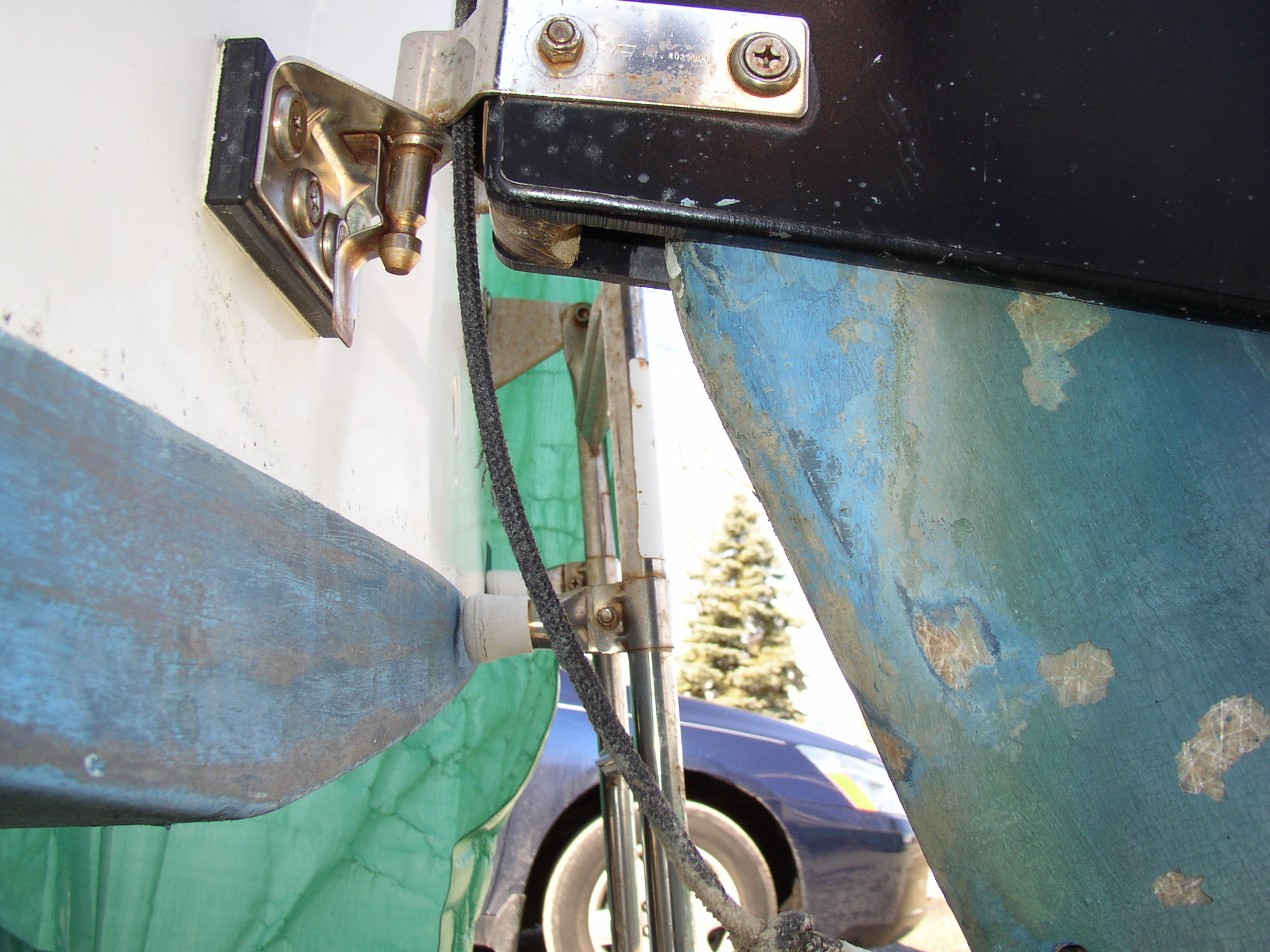

>> Here is a picture of what we have. The black starboard pieces on
>> either side of the rudder are held apart by wooden spacers. On the
>> forward side of the rudder. the lower end of the spacer is rounded
>> and the downhaul/hold down line runs over that. The spacer prevents
>> the line from getting between the rudder and the starboard pieces on
>> either side of the rudder. The lower aft side of the forward spacer
>> (got that?) is hollowed out so that when the rudder is pulled all the
>> way down (and forward) it fits up against the spacer.
>>
>> Hope this helps but I guess it's a very different setup. We and the
>> boat are here in Rock Hall if you want to come take a look.
>>
>> Mary Lou
>> 1991 R22 Fretless
>> Rock Hall, MD
>>
>>
>>
>>
>>
>> At 02:41 PM 3/19/2007, you wrote:
>>
>>>Smaller previous picture is where Rudder downhaul line exits the rudder
>>>housing
>>>
>>>http://www.nabble.com/file/7273/E27C2146.JPG
>>>
>>>
>>>
>>>
>>>Rory,
>>>I'm not sure what I'm looking at either.  Perhaps another picture showing
>>>the "big picture"? - rob
>>>
>>>----- Original Message -----
>>>From: "Rory Orkin" <roryorkin at earthlink.net>
>>>To: <rhodes22-list at rhodes22.org>
>>>Sent: Monday, March 19, 2007 10:54 AM
>>>Subject: [Rhodes22-list] Downhaul rigging revisited
>>>
>>>
>>> >
>>> >   A while back I posted a question about the downhaul which resulted
>>> in a
>>> > discussion about a turning bar which had been installed incorectly on
>>> some
>>> > boats.
>>> >             I have included a few pictures of the downhaul rigging.
>>> The
>>> > rudder pinches the downhaul between the rudder and the back of the
>>> rudder
>>> > housing.. Is this how it is supposed to be ? In the second picture I
>>> show
>>> > how the turning bar would be installed.. I find that without the
>>> turning
>>>bar
>>> > installed I will be pinching the downhaul at the SIDE of the rudder
>>> and
>>> > jamming the whole works..  Wouldnt it make more sense to but some
>>> guides
>>>on
>>> > the forward  part of the rudder assembly and run the line down and
>>> outside
>>> > so the rudder never pinches the line ?
>>> >
>>> >   http://www.nabble.com/file/7270/E27C2142.JPG
>>> > http://www.nabble.com/file/7269/E27C2143.JPG
>>> > --
>>> > View this message in context:
>>>http://www.nabble.com/Downhaul-rigging-revisited-tf3427541.html#a9553642
>>> > Sent from the Rhodes 22 mailing list archive at Nabble.com.
>>> >
>>> > __________________________________________________
>>> > Use Rhodes22-list at rhodes22.org, Help? www.rhodes22.org/list
>>>
>>>
>>>__________________________________________________
>>>Use Rhodes22-list at rhodes22.org, Help? www.rhodes22.org/list
>>>
>>>--
>>>View this message in context:
>>>http://www.nabble.com/Downhaul-rigging-revisited-tf3427541.html#a9558100
>>>Sent from the Rhodes 22 mailing list archive at Nabble.com.
>>>
>>>__________________________________________________
>>>Use Rhodes22-list at rhodes22.org, Help? www.rhodes22.org/list
>>>
>>>
>>>--
>>>No virus found in this incoming message.
>>>Checked by AVG Free Edition.
>>>Version: 7.5.446 / Virus Database: 268.18.14/727 - Release Date:
>>>3/19/2007 11:49 AM
>> -------------- next part --------------
>> A non-text attachment was scrubbed...
>> Name: rudder hold down 003a.jpg
>> Type: image/jpeg
>> Size: 284321 bytes
>> Desc: not available
>> Url :
>> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20070319/854f2d69/attachment.jpg
