[Rhodes22-list] Bill's Bilge Pump Puzzle

[Rob Lowe]

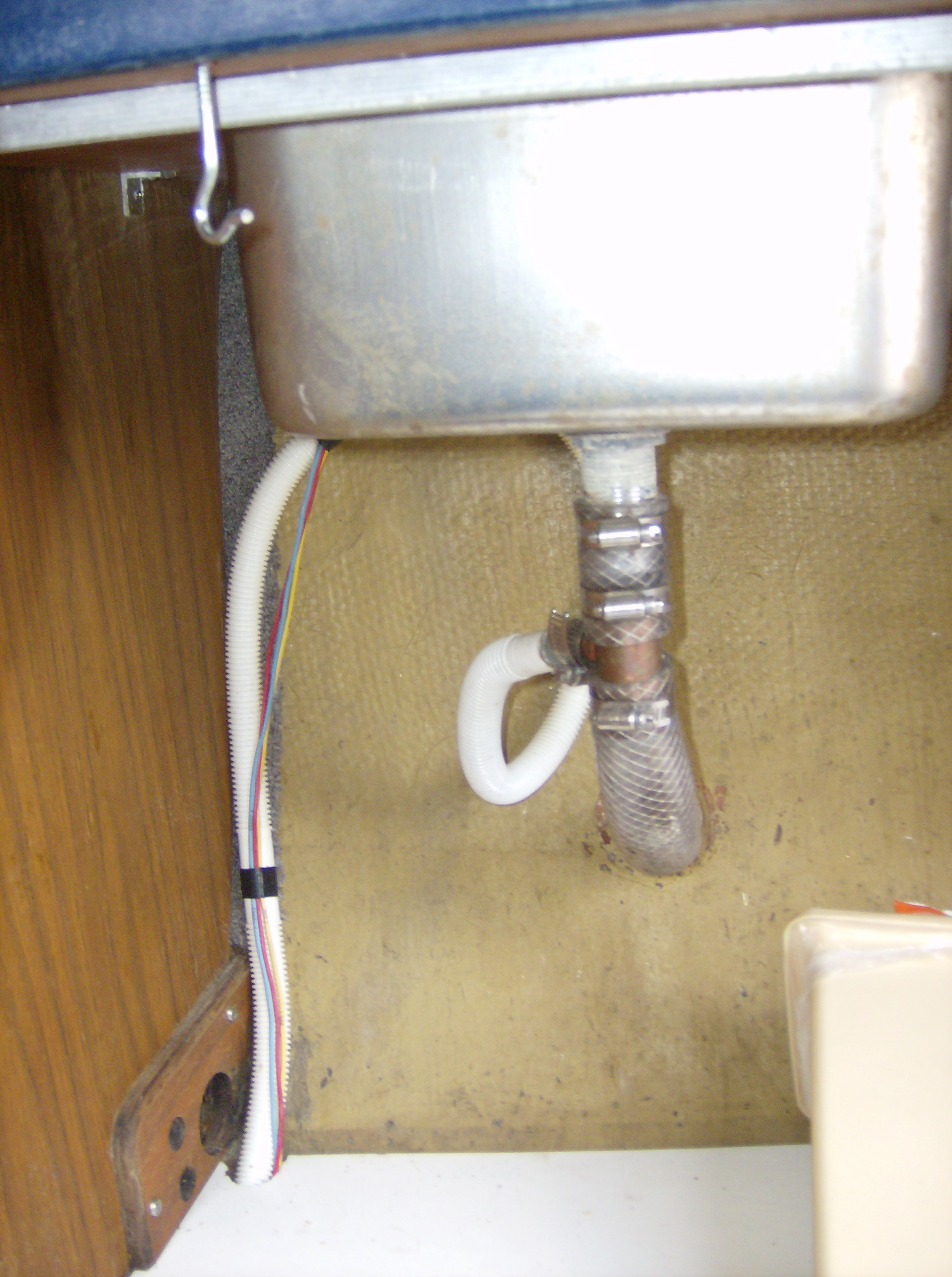

Finally got a picture. You can see where the bilge pump hose (white) runs up
and loops higher than the base of the sink and then T's into the sink
drain. - rob

----- Original Message -----
From: "Rob Lowe" <rlowe at vt.edu>
To: "The Rhodes 22 mail list" <rhodes22-list at rhodes22.org>
Sent: Wednesday, August 22, 2007 8:46 AM
Subject: Re: [Rhodes22-list] Bill's Bilge Pump Puzzle


> Bill,
> The bilge pump in the cabin is hooked into the sink drain (in my boat
> anyway) after running under the cabin floor and up in the sink area. The
> drain hose is tee-d into the sink drain.  The bilge hose has to loop up
> higher than this connection (to right up under the counter top) to keep
> water from running back in through the thru hull when heeled over to port.
> I'll try to take a picture this weekend. - rob
>
> ----- Original Message -----
> From: <Bdunn1 at aol.com>
> To: <czerwonky at earthlink.net>; <rhodes22-list at rhodes22.org>
> Sent: Wednesday, August 22, 2007 7:19 AM
> Subject: Re: [Rhodes22-list] Bill's Bilge Pump Puzzle
>
>
> > Art:   Thanks for you assistance.   Currently the laz bilge pump is
piped
> out
> > the back of the boat; No piping in the bilge area under the floor.   I
> will
> > not Y as you suggest.   I have a water pump located in the laz but
seldom
> use
> > it since the dockside hose is more convenient.   I have never seen water
> in the
> > laz so my thinking is to relocate that pump to the bilge area you
pointed
> > out.   Where does the piping discharge to in your boat?
> > Regards,
> > Bill
> >
> >
> > **************************************
> >  Get a sneak peek of the all-new
> > AOL at http://discover.aol.com/memed/aolcom30tour
> > __________________________________________________
> > Use Rhodes22-list at rhodes22.org, Help? www.rhodes22.org/list
>
>
> __________________________________________________
> Use Rhodes22-list at rhodes22.org, Help? www.rhodes22.org/list
