John,

This definitely sounds like something I will want to pursue.   I don't have
time at the moment to give it the attention it deserves but I will
definitely get back to you with questions.

Thanks alot.

Jim

jlock wrote:
>
> Despite its age and small inventory of nagging problems I love my
> Rhodes ('79 model).  The mast is not from a Rhodes.  Don't know what
> its origin is.  I believe all Rhodes non-IMF rigs were masthead design
> (Stan, correct me if I'm wrong on that).  My rig appears to be a 7/8
> fractional design.  See photos attached.  You can see that the
> forestay attaches to the mast some distance down from the top and you
> can also see the diamond stays that reinforce the top of the mast.  It
> is my understanding that this supports larger headsails for racing.  I
> dunno from experience.  I just have the 175 Genoa on it.
>
> The boom is fixed in position on the mast.  Relative to IMF mast it is
> always in the UP position.  The boom is attached to a gooseneck that
> provides boom furling.  This works by taking up the topping lift to
> support the boom and easing the main halyard.  Then, by pulling back
> slightly on the boom, it disengages from the fitting on the gooseneck
> and can rotate freely.  I just roll the boom 3-4 times to wrap some
> sail around it for a first reef.  Then push the boom forward to re-
> engage the gooseneck, trim the main halyard, and release the topping
> lift.
>
> It's less complicated than it sounds and you can probably convert any
> non-IMF mast to boom furling with parts from Dwyer Mast.  You may or
> may not have to replace the boom itself.  You may just need new end
> caps and a roller-furling gooseneck.  See the following -
>
> http://www.dwyermast.com/items.asp?cat1ID=40&cat1Name=Hardware&familyID=17&familyName=Goosenecks
> http://www.dwyermast.com/families.asp?cat1ID=30&cat1Name=Booms
>
>
> Cheers!
> John Lock
> ~~~~~~~~~~~~~~~~~~
> s/v Pandion - '79 Rhodes 22
> Lake Sinclair, GA
> ~~~~~~~~~~~~~~~~~~
>
>
> On May 19, 2009, at 11:34, R22RumRunner at aol.com wrote:
>> Jim,
>> A good friend of mine purchase a Rhodes 22 that was a salvage hull.
>> It had
>> a large hole in the bottom, no mast and a host of other problems. He
>> rebuilt the  boat and purchased a non-standard mast and rigged a
>> boom which
>> allowed him to  roll the main sail onto it. The boat has gone
>> through at least
>> three other  owners in recent history and it now belongs to John
>> Locke of this
>> forum. Perhaps  he could explain how it works and give you some
>> details. It
>> might work for  you.
>>
>> Rummy
>
>
>
> -------------- next part --------------
> A non-text attachment was scrubbed...

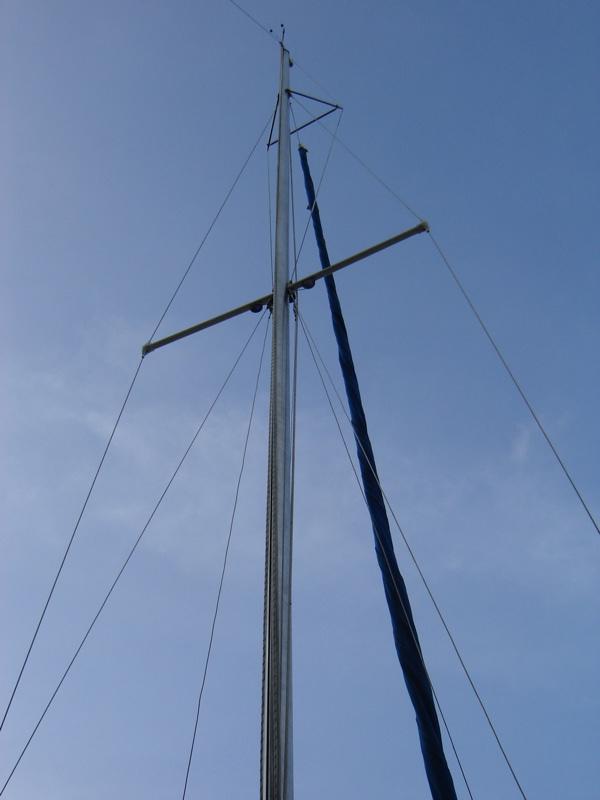

> Name: mast_top.jpg
> Type: image/jpeg
> Size: 25353 bytes
> Desc: not available
> Url :
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20090519/891d76b2/attachment.jpg
> -------------- next part --------------
> A non-text attachment was scrubbed...

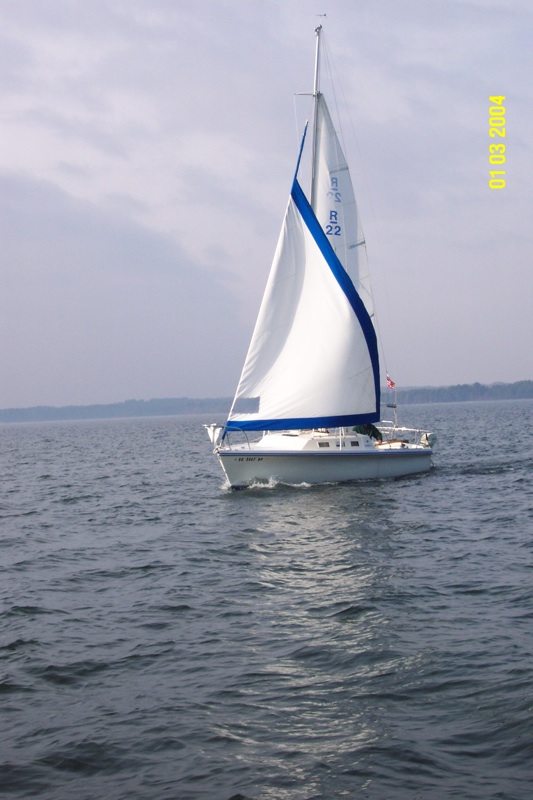

> Name: under_sail.jpg
> Type: image/jpeg
> Size: 117048 bytes
> Desc: not available
> Url :
> http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20090519/891d76b2/attachment-0001.jpg
