[Rhodes22-list] Chainplate reinstallation

[Lowe, Rob]

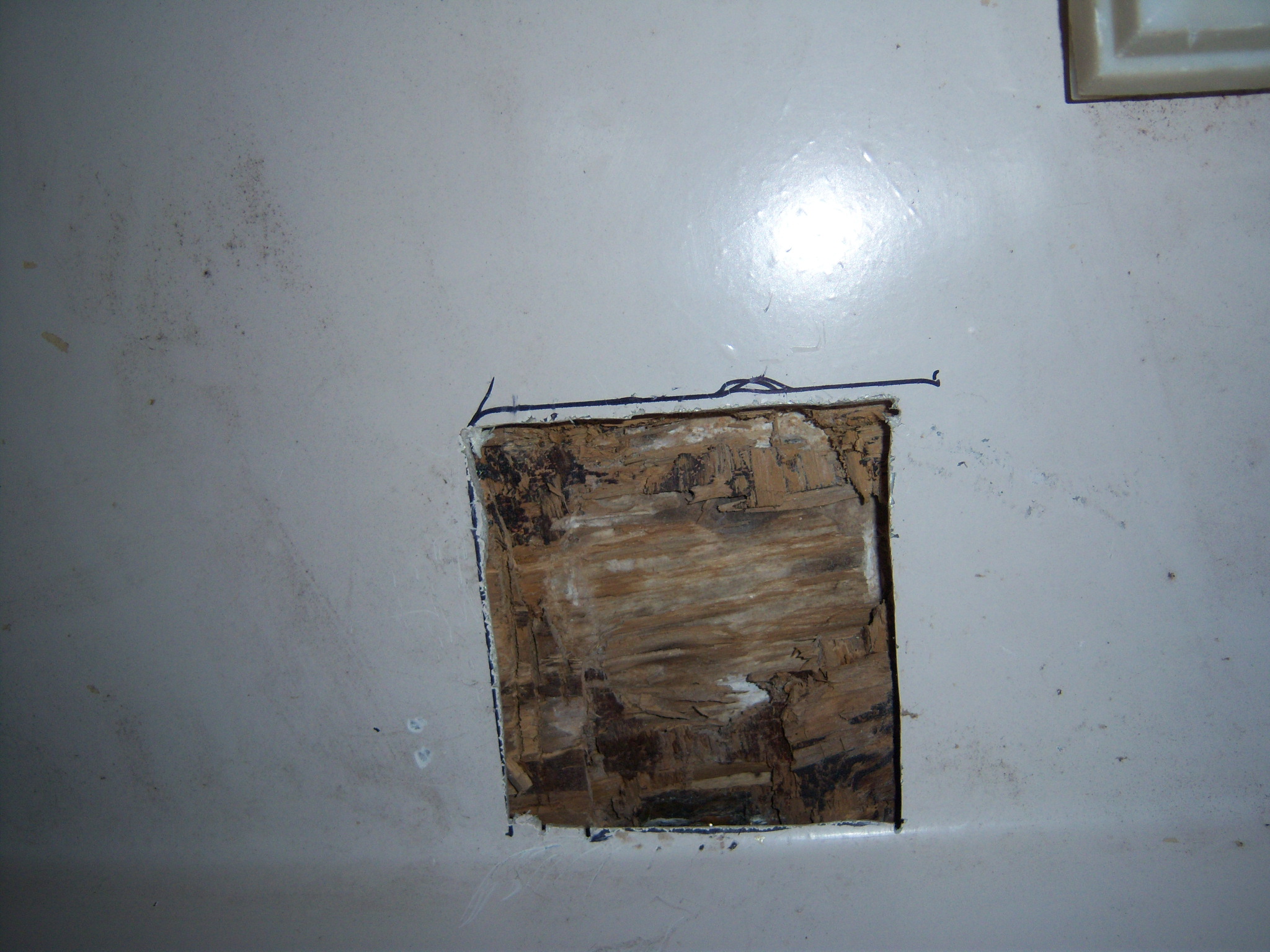

Here is a picture of where the chain plate is originally mounted.  You can sort of tell where the location is by the location of the cabin light. You can't tell a whole lot by the photo, but I cut an access hole in my cabin top liner to examine the damage when mine pulled.  The chain plate enters the cabin top and is bent at a 90 degree angle towards the centerline of the boat.  It is mounted to the plywood shown with a single (maybe two, I only found one) wood screw.  While Ron chose to replace the wood and reinstall the chain plate in the original location, I went with the cabin side mount. - rob


-----Original Message-----
From: rhodes22-list-bounces at rhodes22.org [mailto:rhodes22-list-bounces at rhodes22.org] On Behalf Of Cover-Man
Sent: Thursday, September 01, 2011 9:48 PM
To: The Rhodes 22 Email List
Subject: Re: [Rhodes22-list] Chainplate reinstallation

Ron,

Is the 90 degree bend to the outside or inside?

Art

And,  have a nice day!

On Sep 1, 2011, at 10:38 AM, Ronald Lipton <ronald.lipton at gmail.com> wrote:

> One word of caution.  I rebedded my aft lower chainplate a couple of years ago.
> I expected the chainplate to go straight down along the cabin wall so I drilled a hole
> in the cabin liner - no chainplate.  It turns out that the chainplate is bent by 90
> degrees and bedded under the plywood spacer.  I replaced the rotted wood and
> epoxyed around the chainplate.
>
> Ron
>
> On 9/1/11 8:13 AM, Lowe, Rob wrote:
>> I used a backing block is just a piece of 1X4, just something to hold the screws.  I used machine screws with nuts.  But again I used nylon since I wanted a break away function.  Now that I look closely at what Slim did, he might have used sheet metal screws on both sides to provide the same ability.  I don't think you want a strong though bolt that won't give should another serious problem occur.  If you're discussing with Stan, might see what he recommended.  Or maybe Slim will chime in. - rob
>>
>>
