[Rhodes22-list] Swing keel help

[Ric Stott]

I just did it on my '84 - which might be different but not sure.
Its not hard, but takes some time.
You can do it while the boat is on the trailer.
Remove the port bench seat
Remove the floor boards,
Unscrew the Center Board (CB) cap - mine has 36 screws.
Remove cap to expose the line and turning blocks.
Remove and clean the rubber gasket then clean the trunk top and cap
bottom I used M.E.K. or Acetone on the FG, but water and a brush on
the rubber.
Remove the CB - its heavy, but I did it myself with a line tied to the
blocks.
The inside of trunk and CB is  probably a mess and needs to be
cleaned, scraped and painted with bottom paint.

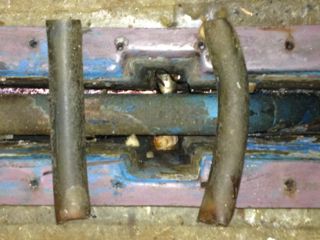

Inspect and or replace the hose (stops) that prevent the CB from
rising in the channels at the pivot.
Replace line with 1/4 inch no stretch line

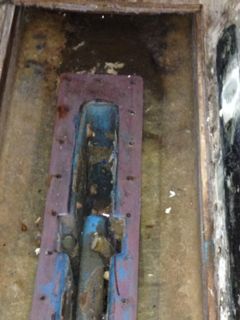

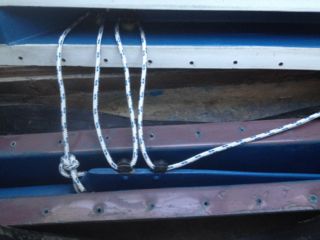

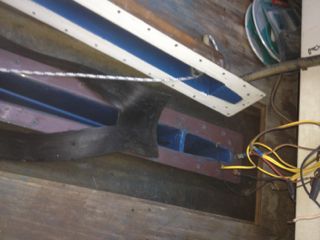

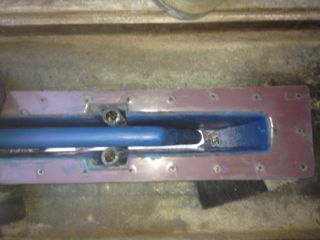

Attached are 2 'before' and 3  'after' photos

Ric Stott
s/v Dadventure
Hampton Bays NY
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_3636.jpg
Type: image/jpeg
Size: 20451 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20140430/ffc831b5/attachment.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_3638.jpg
Type: image/jpeg
Size: 22558 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20140430/ffc831b5/attachment-0001.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_3752.jpg
Type: image/jpeg
Size: 18266 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20140430/ffc831b5/attachment-0002.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_3754.jpg
Type: image/jpeg
Size: 19389 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20140430/ffc831b5/attachment-0003.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_3755.jpg
Type: image/jpeg
Size: 17147 bytes
Desc: not available
Url : http://www.rhodes22.org/pipermail/rhodes22-list/attachments/20140430/ffc831b5/attachment-0004.jpg
-------------- next part --------------

On Apr 30, 2014, at 1:59 PM, George Irwin wrote:

> How do you fix a broken swing keel line on a Rhodes 22 of 1974 vintage
> Boat is on a single axle trailer
>
>
>
> --
> View this message in context: http://rhodes-22.1065344.n5.nabble.com/Swing-keel-help-tp47899.html
> Sent from the Rhodes 22 mailing list archive at Nabble.com.
