[Rhodes22-list] Re: HELP!! CB trunk has delaminated!

[Lou Rosenberg]

   Roger,
  I soon realized that I would never want to use a Sawsall on the
trunk!  A drill to pierce the thin layer of  FRP that has bulged
outward and then a few taps w a strong wood chisel would do ..  The
manufacturer didnt lay up any glass mat there .

  Lou




>   I now realize that a sawsall on just one side of the trunk might
>give me enough room and then all I have to do is re seal and re
>glass the trunk but that is still alot of work compared to doing
>just the board.
>   My initial measurements on the trunk told me that I only needed
>about 1/16" more clearance total to make the board move freely.
>  I have also thought about adding a emergency release on the top of
>the cap . Basically a spring loaded  rod attached with a rubber
>piece that contacted the back of the board that would help it
>release if it got stuck during the season. What do you think of that
>idea?
>
>more info later,
>Lou
>
>>GBI did not build the early Rhodes 22's in-house.  Instead, the construction
>>was out-sourced to a number of contract boatyards.  The quality of
>>construction at some of these boatyards was not of a very high standard,
>>which is why Stan eventually started building his own boats in-house.  This
>>is also why GBI will not recycle & warranty Rhodes 22's from this era.   My
>>fearless hypothesis regarding the problem with your centerboard trunk is
>>that the FRP laminate was too thin &/or of poor quality.  Water has leaked
>>into the cement thru this questionable FRP laminate.  Over time, this water
>>has reacted with the residual Portlant cement & expanded to give you the
>>bulge we observe today.
>>
>>My initial reaction is that you are going to have to grind away the bad FRP
>>laminate in the centerboard well + some cement.  Then, you are going to have
>>to rebuild the walls of the centerboard well with new FRP laminate.  Ugh!
>>
>>Let me think about this problem a little more?
>>
>>Roger Pihlaja
>>S/V Dynamic Equilbrium
>>
>>
>>----- Original Message -----
>>From: <steadilsr at verizon.net>
>>To: "The Rhodes 22 mail list" <rhodes22-list at rhodes22.org>
>>Sent: Sunday, December 05, 2004 9:11 PM
>>Subject: [Rhodes22-list] Re: HELP!! CB trunk has delaminated!
>>
>>>  Roger, Todd , Peter T and all Rhodies:
>>>   Need advice on pics being posted.
>>>
>>>   After pulling out the stuck CB last week I decided to use my dremel tool
>>>  attached to a flex shaft & 120grit sand minidrum to shave about 1/16 " of
>>the
>>>  fibreglass away which is bulging out into the upper trunk.
>>>  During the wk I carefully measured the CB thickness using two  straight
>>edges
>>>  for references I meas the distance btw the edges along the length of the
>>>  board.
>>>   i then cut strips of plywood conforming to those depths as test sticks.
>>I
>>>  used those depth sticks today to measure how much glass i was trimming
>>away
>>>  with the dremel.
>>>   Its diff to photograph but my trunk  as it has 2 apparent sections of
>>depth.
>>>  The upper trunk where the lip is sealed with the neoprene and the lower
>>>  section which opens to the sea.  My lower section is not bulging and there
>>is
>>>  plenty of room, but the upper is too tight.
>>>   After sanding the head of the board down I was able to drop the depth
>>stick
>>>  in and moved on to the middle of the board.  The section to the rear of my
>>>  pivot was tighter and soon I foung my wall had cracked and the glass
>>crumbled
>>>  away revealing the dry cement.  I know how to patch the hole with epoxy,
>>but
>>>  now I cannot sand the walls with out risking similar problems.
>>>   I am posting my pics for reference and will have more next week.
>>>   Any advice welcomed.
>>>
>>>   note: Even if a surveyor had told me not to buy this boat due to a stuck
>>cb,
>>>   i think i would have gone agains his advice due to the condition of the
>>hull
>>>  and other parts.  I am still convinced my boat will sail this summer!
>>>  Lou
>>>
>>
>>
>>----------------------------------------------------------------------------
>>----
>>
>>>  Name: 16 w ruler CU..jpg Type: image/jpeg Size: 135840 bytes Desc: not
>>available
>>>  Url:
>>http://www.rhodes22.org/pipermail/rhodes22-list/attch/200412/05/16wrulerCU..
>>jpg
>>>
>>
>>
>>----------------------------------------------------------------------------
>>----
>>
>>>  Name: Str down trunk no dam vi.jpg Type: image/jpeg Size: 134960 bytes
>>Desc: not available
>>>  Url:
>>http://www.rhodes22.org/pipermail/rhodes22-list/attch/200412/05/Strdowntrunk
>>>
>>
>>
>>----------------------------------------------------------------------------
>>----
>>

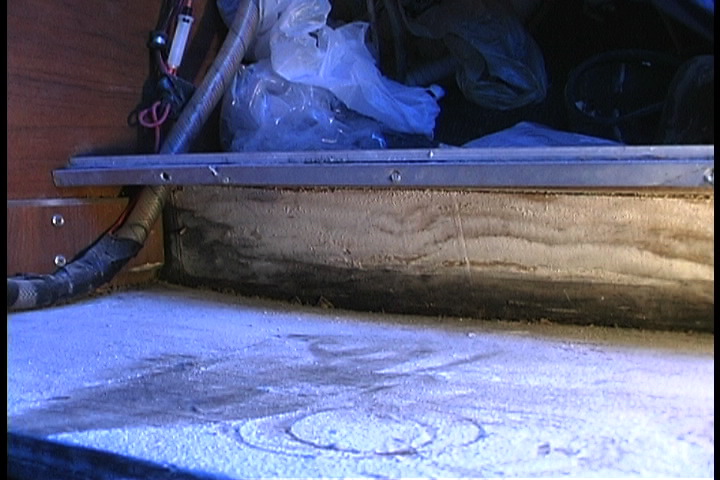

>>>  Name: MCU  galley flr.jpg.jpg Type: image/jpeg Size: 138460 bytes Desc:
>>not available
>>>  Url:
>>http://www.rhodes22.org/pipermail/rhodes22-list/attch/200412/05/MCUgalleyflr
>>>
>>
>>
>>----------------------------------------------------------------------------
>>----
>>
