[Rhodes22-list] Claude's wiring project & replies

[Todd Tavares]

Well since Claude has not attached a schematic, and Ed wants to run
circles, I will start with a few pics.

Claude, if this seems too basic, I apologize as I have no intention of
insulting you.  If so, maybe somebody else will glean some knowledge.
Attached are three drawings.  (1) Parallel circuits  (2)series circuit.
I know of no circuits on a boat that are simple series circuits (but I am
prone to being wrong)

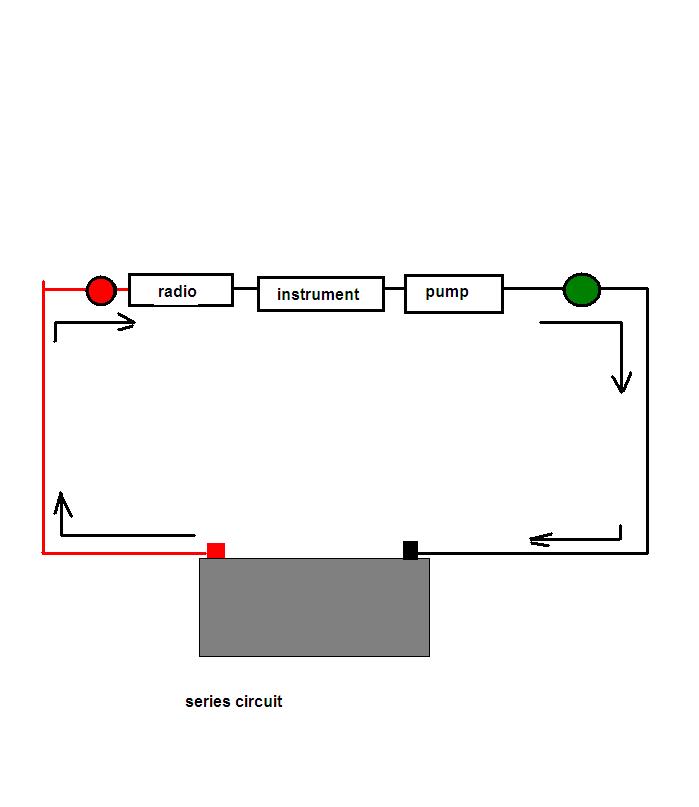

Series describes how the devices are connected to each other.    In the
series circuit, all devices or "loads" are wired in a string, like a
daisy-chain. If any one device malfunctions and breaks the chain, all
will cease to function.  This is like old Christmas lights...when any
bulb burned out, the whole string goes out.  Additionally, the more
devices in the chain, the less voltage each one will have to use. For
instance if our series circuit has only light bulbs, as we add more
bulbs, they will all get dimmer.

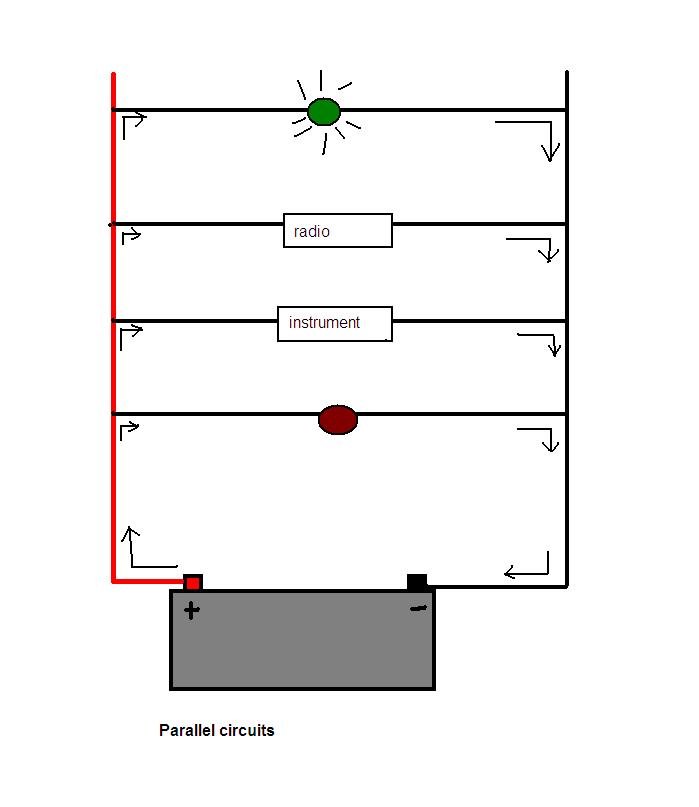

Parrallel circuits are, as the name describes...in parallel to each
other.  Each device is connected on one side to the positive terminal of
the battery, and the other side is connected to the negative terminal of
the battery.  No other devices are sharing the power.

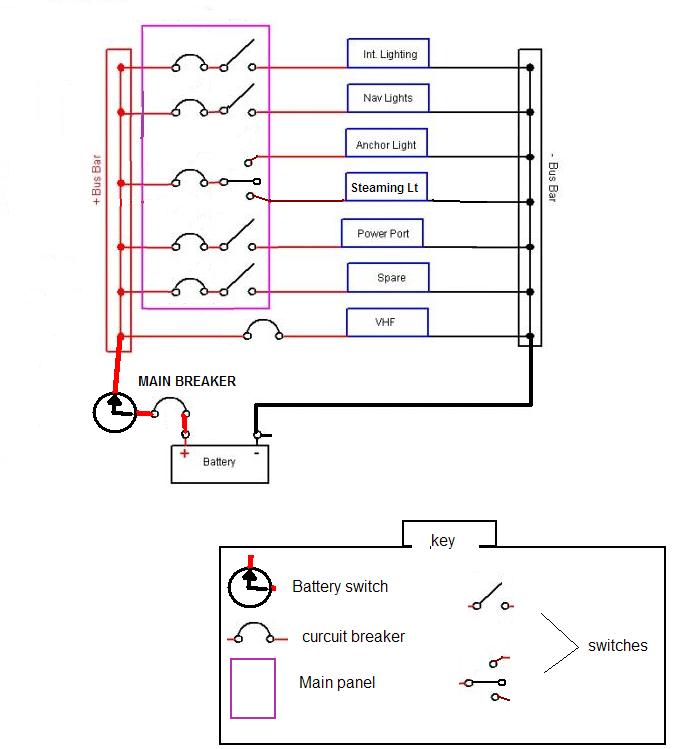

The third pic is of a partial wiring schematic someone posted on the
trailer sailor forum.   Note how the steaming and anchort lights are fed
from the same circuit breaker, but are on separate poles of a three way
switch.

Todd T.

  ----- Original Message -----
  From: "Claude Cox"
  To: "The Rhodes 22 mail list"
  Subject: Re: [Rhodes22-list] Claude's wiring project & replies
  Date: Wed, 10 May 2006 15:05:47 -0400


  Rummy,
  I'll remember the timing.
  Claude

  > [Original Message]
  > From:
  > To:
  > Date: 5/10/2006 2:31:53 PM
  > Subject: Re: [Rhodes22-list] Claude's wiring project & replies
  >
  > Claude,
  > Drinking always starts before breakfast. Gotta have that rum and
  > orange juice before the french toast. It helps to get rid of the
  > hangover from
  the night
  > before.
  >
  > Rummy
